Innopak Super

Updated: October 28, 2024

Product Description

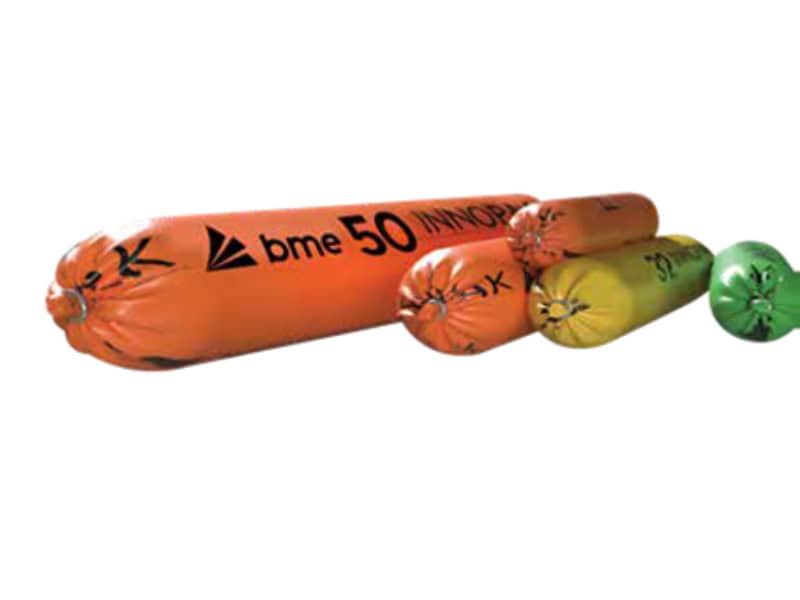

Innopak products are high energy detonator sensitive film wrapped cartridged emulsions. Wax additives in the formulation make for firm products with excellent handling, tamping and hole retention characteristics.
img-1

Application

Innopak products are designed for general purpose blasting applications in underground mines, open pit mines, quarries, and construction with wet or dry holes. Innopak products may be used to prime holes dry holes loaded with ANFO. Innopak cartridges should not be slit or tamped in the presence of sulphide reactive ground.

Primary Benefits

Innopak products are used as column loads in small to medium hole diameter applications where bulk heavy ANFOs or emulsions blends fall below their critical diameters. Innopak products are detonator sensitive and can be used to prime Innopak column loads in wet holes, and prime blow loaded or free poured column loads of ANFO in dry holes. Innopak product energies can be selected to match desired blast fragmentation distributions or economies.

Innopak products are dual salt emulsions demonstrated to generate very low levels of post blast fume and suitable for use in underground and surface blasting. Dual salt emulsions are also demonstrated to have extended magazine storage life under a variety of environmental conditions.

Technical Properties

Property Unit Innopak Super
Density g/cm³ 1.14 +/- 0.06
Velocity of Detonation m/sec 5825
Relative Weight Strength RWS 83
Relative Bulk Strength RBS 118
Water Resistance Excellent Excellent

Velocity of Detonation, Relative Weight and Bulk Strengths calculated using the IPX code at a density of 1.14 g/cm³ and a cut-off pressure of 100 MPa relative to ANFO at a density of 0.80 g/cm³.

Actual in field velocity of detonation will vary and is dependent on hole diameter and confinement.

Guidelines For Use

Priming and Initiation

Innopak cartridges emulsions are compatible with most non-electric and electronic detonator systems and are reliably initiated with detonators assembled with high strength detonators (No. 8 strength or greater base charge).

Do not attempt to initiate Innopak with No. 6 strength fuse caps.

Innopak cartridges emulsions are reliably initiated with 10 gram detonating cord or greater core load.

Innopak products are detonator sensitive down to an internal temperature of -20 °C

Do not use Innopak products to prime bulk loaded heavy ANFOs or emulsion blends.

Consult with a BME Technical Representative for additional priming and initiation guidance.

Blasthole Charge Length Hole Diameter Density Relationships

Maximum hole depth depends on product selection, hole diameter, product densities, and the presence of water. Please contact a BME Technical Representative for additional guidance.

Ground Temperature

This product may be used in ground temperatures from 0 ° to a maximum of 65 °C. If the application requires use outside of this temperature range please contact a BME Technical Representative for additional guidance.

Reactive Ground

This product is not formulated for use in reactive ground. Reactive ground is typically characterised by the presence of sulphide mineralization. Innopak cartridges should not be slit or tamped in the presence of sulphide reactive ground. If the application requires use in known reactive ground, or in untested sulphide bearing ground, please contact a BME Technical Representative for additional guidance.

Storage

Innopak products must be stored in an approved Class 1.1 D magazine with adequate ventilation.

Innopak products are best stored at temperatures above –20 °C.

Innopak products typically have a minimum shelf life of 1-year under correct storage conditions.

Please consult with a BME Technical Representative for additional guidance.

Packaging

Innopak detonator sensitive emulsions are packaged in robust coloured PMP film cartridges. Innopak cartridges are packed in 25 kg fibreboard cases. Case cartridge count is based on a nominal product density of 1.14 g/cm³.

Custom lengths available on request.



Cartridge size mm

Nominal weight g (±3g) Nominal count cartridges/case Cartridge Diameter mm

Cartridge Colour

25 x 200

112 223 25

Orange

27 x 270

176 142 27

Red

27 x 580

379 66 29

Green

29 x 270

203 123 32

Yellow

29 x 850

437 57 28

Orange

32 x 270

248 101 45

Orange

32 x 580

532 47 50

Orange

38 x 270

349 72

38 x 580

750 33

45 x 200

363 69

45 x 270

490 51

45 x 580

1052 24

50 x 270

604 41

50 x 580

1299 19

UN Classification for Transport and Storage

Product Classification
Authorised Name: Innopak Super
Correct Shipping Name: EXPLOSIVE, BLASTING, TYPE E
Classification: 1.1 D
UN Number: 0241

Safe Use

  • Never fight explosive fires.
  • Refer to Safety Data Sheet (SDS) for first aid information.
  • All explosives must be transported and stored in accordance to relevant regulations.
  • All explosives are classified as dangerous goods and may cause damage to property, personal harm, or death, if not used correctly.
  • Always keep products away from sources of heat, sparks, flame or hot surfaces and avoid mixing with combustibles or incompatible materials.



In case of emergencies, click here to contact our team for assistance.

Disclaimer

All rights reserved. To the maximum extent permitted by law.

Omnia disclaims all liability whatsoever, whether arising in contract, delict (including negligence) or otherwise in relation to the use of any products/solutions or services and all implied warranties, terms and conditions relating to the products/solutions or services (whether implied by statue, common law or otherwise), including (without limitation) any warranty, term or condition as to accuracy, completeness, satisfactory quality, performance, fitness for purpose or any special purpose, non-infringement, information accuracy, as between Omnia and you, are hereby excluded. Omnia specifically disclaims liability and will not be responsible for, any liability or damages, howsoever arising, resulting from the use or reliance upon the information in this document.

You assume sole responsibility for results obtained from the use of the products/solutions or services, and for conclusions drawn from such use.

We continuously update our technical data sheets to reflect the most current and accurate information based on the latest available data. As such, the information provided is subject to revision. We recommend regularly checking for updates to ensure you are accessing the most up-to-date technical details.
