Product Description
The AXXIS Titanium electronic initiation system is the newest generation of AXXIS technology. The AXXIS Titanium electronic initiation system incorporates numerous handling, performance, and safety improvements built upon the highly successful AXXIS GII system.
The AXXIS Titanium electronic initiation system is comprised of four components:
- AXXIS Titanium Electronic Delay Detonator (EDD)
- AXXIS Titanium Logger
- AXXIS Titanium Blasting Box
- Blastmap blast design software
Application
The AXXIS Titanium electronic initiation system is designed for use in most general and specialized mining, quarrying, and construction blasting applications on the surface or underground. The AXXIS Titanium electronic initiation system passes ARP 1717-1: The South African National Standard for the design and approval of EDD initiation systems for mining and civil applications.
System Usage
Blasting Boxes

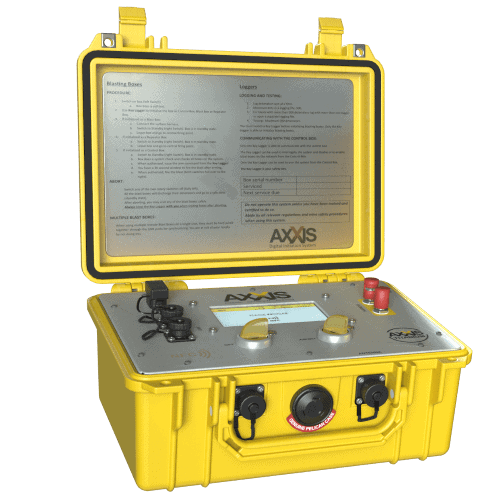

All AXXIS Titanium Blasting Boxes are the same. Each AXXIS Titanium Blasting Box is configurable to a Blaster Box or a Controller Box to accomplish its required function. Blasting Box operation is simple, with double rotary switches for switching a box on, placing it in standby mode, and opening communications channels to fire the blast. Wireless communications are achieved through three selectable open-band frequency channels. Other frequency channels can be configured based on the country requirements.
Blaster Box
AXXIS Titanium Blasting Boxes configured as Blaster Boxes are placed at each blast site and connected to the surface wire harness. No power is supplied to the detonators until system arming from the Controller Box at blasting time.
Each Blaster Box can fire up to 1000 detonators. In large single blasts where more than one Blaster Box is needed, the Blaster Boxes are hard-wired together using AXXIS link sets. Up to 200 Blasting Boxes may be linked together for a total combined firing capability of 200 000 detonators in a single blast.
Final testing of the AXXIS Titanium Electronic Delay Detonators and the harness lines is performed using the AXXIS Titanium Logger before the harness line is connected to the Blaster Box. After the AXXIS Titanium detonators and the harness lines have cleared testing by the AXXIS Titanium Logger, the harness line is connected to the AXXIS Titanium Blaster Box. The AXXIS Titanium Blaster Box is switched on and the unit performs a self-test. Once the self-test is completed the AXXIS Titanium Blasting Box is switched into stand-by mode to open the communications channel – the detonators remain unpowered in stand-by mode.
Controller Box
Only one Blasting Box may be configured as a Controller Box per blast. The Controller Box requires the presence of a Key Logger to authorise arming and firing of the system. On arming of the system with the Controller Box, each Blaster Box then powers up its detonators, and testing routines automatically start and continue until firing time. Detonators respond by exception, allowing a quick testing time and immediate warnings to the operator through the color screen on the Controller Box and the Key Logger.
Repeater Box
A Repeater Box may be used in challenging terrains where there is no direct line of site communication between the Controller Box and any of the remote Blasting Boxes. The Repeater Box only repeats the communications signal between the Controller Box and the remote the Blasting Boxes for more reliable communication.
Combo Box
A Blasting Box may be configured as a Combo Box. The Combo Box configuration is useful in quarry and construction blasting where the harness line-in line from the blast can be directly connected (hard-wired) into the Combo Box at the safe firing point.
The Blasting-Controller Combo Box requires the presence of a Key Logger to authorise arming and firing of the system. On arming of the system with the Blaster-Controller Combo Box, the detonators are powered up, and testing routines automatically start and continue until firing time. Detonators respond by exception, allowing a quick testing time and immediate warnings to the operator through the color screen on the Blaser-Controller Combo Box and the Key Logger.
Antennas

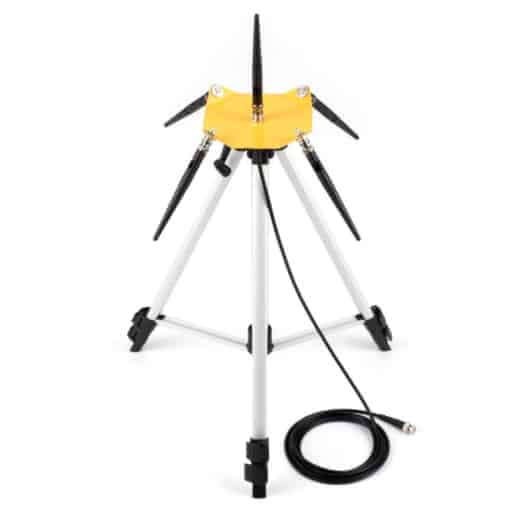

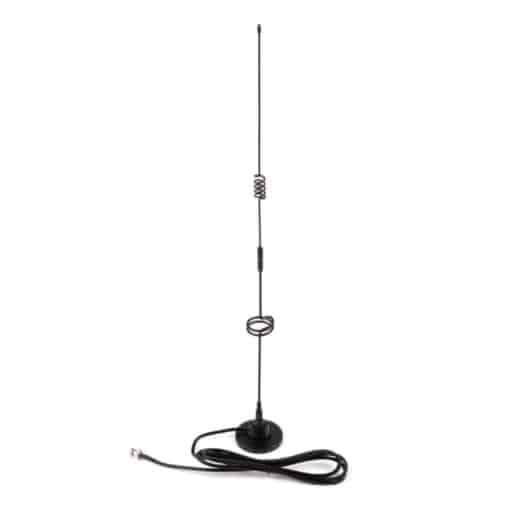

Two types of AXXIS Titanium system specific antennas are available. The short-range antenna can be used for line-of-sight distances up to 1200 m. Depending on frequency allocation, the long- range ET Plate antenna can be used for line-of-sight distances between 1500 m and 5000 m.
Specifications
Guidelines for Use
AXXIS Titanium Blasting Boxes may only be programmed, tested, and fired with AXXIS Titanium Loggers and AXXIS Titanium Electronic Delay Detonators. Do not attempt to program, test, or fire Titanium Blasting Boxes with other blasting equipment. Never mix electronic delay detonators and/or components from different manufacturers.
AXXIS Titanium Loggers and Blasting Boxes need to be calibrated and serviced by BME qualified personnel or providers every 2 years.
Always use AXXIS Titanium harness wire to tie-in blasts. Do not substitute similar looking harness wire as the performance specifications may not be the same.
Although BME AXXIS Titanium cables are engineered and constructed for challenging work environments, care should still be exercised when loading and stemming to avoid cutting or damaging downlines.
Operating Temperature
The AXXIS Titanium Blasting Boxes may be operated in temperatures from -30°C to a maximum of +60°C. If the application requires use outside of this temperature range please contact a BME Technical Representative for additional guidance.
Water, Dust, and Drop Shock Resistance
AXXIS Titanium Blasting Boxes are robust electronic instruments that are engineered to be water and dust resistant (IEC 60529 IP65 and IP68) and drop shock resistant (IEC 60069-2-32: 1975). AXXIS Titanium Blasting Boxes are not waterproof – Do not submerge AXXIS Titanium Blasting Boxes in water.
Storage
AXXIS Titanium Blasting Boxes are robust electronic instruments that need to be used, charged, and stored with care. The AXXIS Titanium Blasting Boxes may be stored in temperatures from -40°C to a maximum of +70°C. Please consult with a BME Technical Representative for site specific guidance.
Safe Use
- Never fight explosive fires.
- Refer to Safety Data Sheet (SDS) for first aid.
- All explosives must be transported and stored in accordance to relevant regulations.
