AXXIS Silver Logger

Logger

January 27, 2022

Product Description

The AXXIS Silver electronic initiation system is the latest expansion of AXXIS technology. The AXXIS Silver electronic initiation system incorporates numerous handling, performance, and safety improvements built upon the highly successful AXXIS GII system. AXXIS Silver is a cost effective solution for users wanting to upgrade from the limitations and results of non-electric initiation to the flexibility and added blast performance realized by electronic initiation.

The AXXIS Silver electronic initiation system is comprised of four components:

53 Additional AXXIS Silver Logger Square LR 02 01 1 1

Application

The AXXIS Silver electronic initiation system is designed for use in most general and specialized mining, quarrying, and construction blasting applications on the surface or underground. The AXXIS Silver electronic initiation system passes ARP 1717-1: The South African National Standard for the design and approval of EDD initiation systems for mining and civil applications.

System Usage

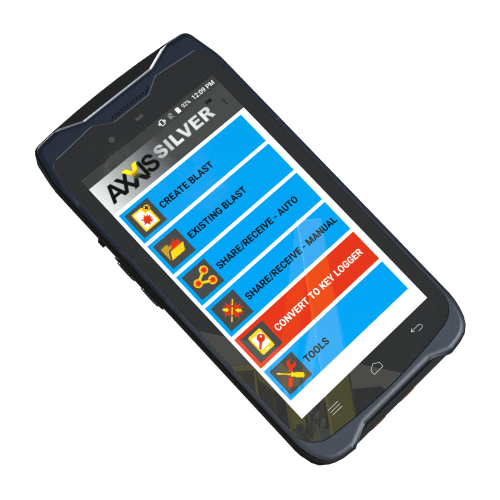

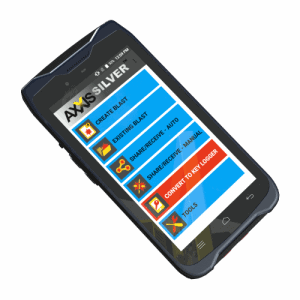

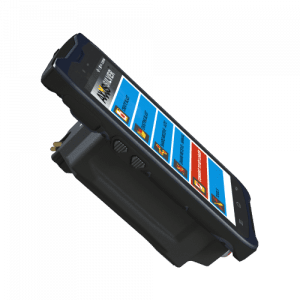

AXXIS Silver Loggers are robust, hand-held devices for the logging and testing of AXXIS Silver Electronic Detonators. These mobile devices are manufactured by Trimble and have an AXXIS developed POD that docks onto the device. The POD contains the detonator communication circuit and this enables the logging and programming of AXXIS Silver Electronic Detonators. The AXXIS Silver Logger can read and write to the detonator’s non-volatile memory, test a single detonator, test multiple detonators and transfer the logged blast files to the AXXIS Silver Electronic Detonators Blasting Box.

AXXIS Silver Loggers are easy and convenient to handle. They operate on the Android operating system which facilitates the upload of history files, current logging activity, reporting applications and web pages.

In order to operate AXXIS Silver Blasting Boxes (in Blaster Box mode) at blast firing time, one AXXIS Silver Logger is configured and designated as the Key Logger. The Key Logger generates a one-time pin to configure the AXXIS Silver Blasting Boxes (in Blaster Box mode). As a security measure, any AXXIS Silver Blasting Boxes (in Blaster Box mode) that has not been configured for a blast and bound through the one-time pin on the Key Logger will not function for that blast. At the safe firing point, the Key Logger and the one-time pin is also required to arm the AXXIS Silver Blasting Box (in Controller Box mode). Upon blast completion, all AXXIS Silver Loggers and Blasting Boxes return to a neutral un-configured state.

53 Additional AXXIS Silver Logger Square LR 02 01 1 1 1
53 Additional AXXIS Silver Logger Square LR 02 01 1 1

Silver Specifications

Column 1Column 2
Logging DeviceTDC 100 Logger with AXXIS CAP
Operating SystemAndroid 6
Screen Size134 mm (5.25 inches)
Resolution1280 x 720 pixels
User InterfaceColour Touch Screen
Graphic Interface
Buttons for use in cold climates
Battery Lithum-ion
Battery Capacity 10.8 V
6600 mAh
35 Whr
POD Maximum Output9 volts
50 mA
Logger Mass0.480 kg
Maximum Detonators per Logger500 detonators per file
Maximum Detonators per Blasting Box in Blaster Box Mode800 detonators
Maximum Blaster Boxes per Controller Box2 Blaster Boxes
Maximum Detonators per Blast 1600 Detonators
Logger FunctionsLog Detonator UIDs
Program Detonator Firing times
Test 1 to 500 Detonators
Detonator CommunicationVia attached POD
Read functionality
Program Functionality
Test Functionality
Blasting Box CommunicationBluetooth or Wired
QR Code Authentication
Testing FunctionsLine Current Consumption
Programmed / Not Programmed
Detonator Voltage
Harness Line Test for Missing Detonators
Harness Line Test for Intruder Detonator
Resistance to Electrostatic DischargeElectrostatic Discharge Immunity Test (+/- 8 kV contact, +/- 15 kV air)
Electrical Fast Transient / Burst Immunity (+/- 2 kV)
Operating Temperature-30°C and +60°C
Storage Temperature-40°C and +70°C

Guidelines for Use

AXXIS Silver Loggers may only be programmed, tested, and fired with AXXIS Silver EDDs and AXXIS Silver Blasting Boxes. Do not attempt to program, test, or fire AXXIS Silver Loggers with other blasting equipment. Never mix electronic delay detonators and/or components from different manufacturers.

AXXIS Silver Loggers and Blasting Boxes need to be calibrated and serviced by BME qualified personnel or providers every 2 years.

Always use AXXIS harness wire to tie-in blasts. Do not substitute similar looking harness wire as the performance specifications may not be the same.

Although BME AXXIS Silver cables are engineered and constructed for challenging work environments, care should still be exercised when loading and stemming to avoid cutting or damaging downlines.

Operating Temperature

The AXXIS Silver Logger may be operated in temperatures from -30°C to a maximum of +60°C. If the application requires use outside of this temperature range please contact a BME Technical Representative for additional guidance.

Water, Dust, and Drop Shock Resistance

AXXIS Silver EDDs Loggers are robust electronic instruments that are engineered to be water and dust resistant (IEC 60529 IP65 and IP68) and drop shock resistant (IEC 60069-2-32: 1975). AXXIS Silver EDDs Loggers are not waterproof – Do not submerge AXXIS Silver EDDs Loggers in water.

Storage

AXXIS Silver Loggers are robust electronic instruments that need to be used, charged, and stored with care. The AXXIS Silver Logger may be stored in temperatures from -40°C to a maximum of +70°C. Please consult with a BME Technical Representative for site specific guidance.

Safe Use

  • Never fight explosive fires.
  • Refer to Safety Data Sheet (SDS) for first aid.
  • All explosives must be transported and stored in accordance to relevant regulations.
